Multiview Video Coding - 01

Multiview Video Coding


The need for multiview video coding is driven by two recent technological developments: new 3D video/display technologies and the growing use of multi-camera arrays. A variety of companies are starting to produce 3D displays that do not require glasses and can be viewed by multiple people simultaneously. The immersive experience provided by these 3D displays are compelling and have the potential to create a growing market for 3D video and hence for multiview video compression. Furthermore, even with 2D displays, multi-camera arrays are increasingly being used to capture a scene from many angles. The resulting multiview data sets allow the viewer to observe a scene from any viewpoint and serve as another application of multiview video compression.

In July 2008, MPEG officially approved an amendment of the ITU-T Rec. H.264 & ISO/IEC 14996-10 Advanced Video Coding (AVC) standard on Multiview Video Coding. MVC is an extension of the AVC/H.264 standard that provides efficient encoding or compressed representation of sequences captured simultaneously from multiple cameras by exploiting correlation among neighboring camera views. MVC is intended for encoding stereoscopic (two-view) video, as well as free viewpoint television and multi-view 3D television applications. The Stereo High profile has been standardized in June 2009; the profile is based on MVC toolset and is used in stereoscopic Blu-ray 3D releases.

MVC stream is backward compatible with H.264/AVC, which allows older devices and software to decode stereoscopic video streams, ignoring additional information for the second view. 3D video (3DV) and free viewpoint video (FVV) are new types of visual media that expand the user's experience beyond what is offered by 2D video. 3DV offers a 3D depth impression of the observed scenery, while FVV allows for an interactive selection of viewpoint and direction within a certain operating range.  A common element of 3DV and FVV systems is the use of multiple views of the same scene that are transmitted to the user.
The overall structure of MVC defining the interfaces is illustrated in the figure below. The encoder receives N temporally synchronized video streams and generates one bitstream. The decoder receives the bitstream, decodes and outputs the N video signals.

Fig 1: Multiview Video Coding (MVC)

Multiview video contains a large amount of inter-view statistical dependencies, since all cameras capture the same scene from different viewpoints. Therefore, combined temporal and inter-view prediction is the key for efficient MVC. As illustrated in the figure below a picture of a certain camera can not only be predicted from temporally related pictures of the same camera. Also pictures of neighboring cameras can be used for efficient prediction.

Fig 2: Temporal/inter-view prediction structure for MVC

Application Areas:
  • Stereo Scope Video
  • 3D Video/Display
  • Free Viewpoint Video
Topics Related to MVC:
  • Multiview Coding Structures
  • Multiview Coding Tools
  • Inter-view Prediction
  • Illumination Compensation
  • Disparity, Depth and 3D Geometry Coding
  • View Interpolation Prediction
  • Scene Analysis and View Synthesis
  • Random Access Aspects in MVC
  • Multiview Communication Systems
  • Multiview Coding Applications
  • Performance and Complexity Issues in MVC


Wednesday, September 29, 2010

Post a Video to Blog from YouTube

How do I post a video to my blog from YouTube?

If you've got your own videos on your computer that you want to share on your blog, Blogger now allows you to upload video directly!

If you'd like to share a video from YouTube, you can do that, too.

Embedding a YouTube Video

To embed a video from YouTube, just copy the code from the "Embed" box on the video's YouTube page. You can find the "Embed" box in the "About This Video" box when you're watching the video. You can also get the code from the "Embed HTML" box on the "Edit Video" page if the video belongs to your YouTube account. Or simply right click on the video and copy the "embedded html code".

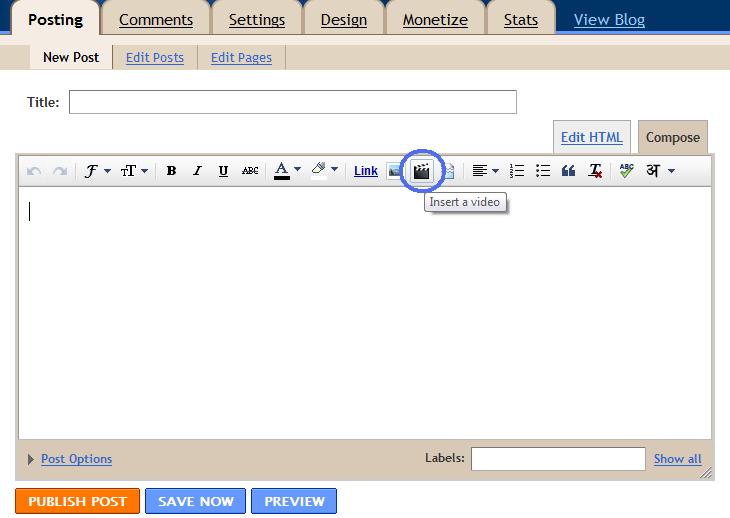

To embed a YouTube video within a blog post, first click "Edit HTML" from within the post editor. Next, paste the video's code into the body of your post. That's it!

Set Up One-Click Video Sharing

If you post YouTube videos to your blog regularly, sharing directly from YouTube is even easier and you'll only have to set it up once.

  1. Click the "Share" button on the YouTube video's page
  2. Scroll down and click "Setup your blog for video posting."
  3. Click "Add a Blog/Site"
  4. Choose "Blogger" as your Blog Service and fill in your Google Account login information.
  5. Choose which blogs you'd like to add to your YouTube account. You can choose more than one.
  6. From now on, when you click "Share", you'll be given the option to post YouTube videos directly to your blogs!

Language Setting on

In the main of youtube page (
click the "भाषा" at the bottom of the page, this will show you available languages...

Sunday, September 26, 2010

H.264 – Inter Prediction

H.264 Video Codec - Inter Prediction

Inter prediction is to reduce the temporal correlation with help of motion estimation and compensation. In H.264, the current picture can be partitioned into the macroblocks or the Submacroblock. In addition to the intra macroblock coding types, various predictive or motion-compensated coding types are allowed in P slices. Each P-type macroblock is partitioned into fixed size blocks used for motion description. Partitionings with luma block sizes of 16 × 16, 16 × 8, 8 × 16, and 8 × 8 samples are supported by the syntax. When the macroblock is partitioned into four so-called sub-macroblocks each of size 8 × 8 luma samples, one additional syntax element is transmitted for each 8 × 8 sub-macroblock. This syntax element specifies whether the corresponding sub-macroblock is coded using motion-compensated prediction with luma block sizes of 8 × 8, 8 × 4, 4 × 8, or 4 × 4 samples. Figure 1 illustrates the partitioning. The prediction signal for each predictivecoded M × N luma block is obtained by displacing a corresponding area of a previously decoded reference picture, where the displacement is specified by a translational motion vector and a picture reference index. Thus, if the macroblock is coded using four 8 × 8 sub-macroblocks, and each sub-macroblock is coded using four 4 × 4 luma blocks, a maximum of 16 motion vectors may be transmitted for a single P-slice macroblock.A macroblock of 16X16 luma samples can be partitioned into smaller block sizes up to 4X4.

Figure 1: Portioning of Macroblock an Submacroblock for Inter Prediction

The smaller block size requires larger number of bits to signal the motion vectors and extra data of the type of partition, however the motion compensated residual data can be reduced. Therefore, the choice of partition size depends on the input video characteristics. In general, a large partition size is appropriate for homogeneous areas of the frame and a small partition size may be beneficial for detailed areas. In former standards as MPEG-4 or H.263, only blocks of the size 16×16 and 8×8 are supported. The inter prediction process can form segmentations for motion representation as small as 4X4 luma samples in size, using motion vector accuracy of one-quarter of the luma sample.
A displacement vector is estimated and transmitted for each block, refers to the corresponding position of its image signal in an already transmitted reference image. In former MPEG standards this reference image is the most recent preceding image. In H.264/AVC it is possible to refer to several preceding images. This technique is denoted as motion-compensated prediction with multiple reference frames. For multi-frame motion-compensated prediction, the encoder stores decoded reference pictures in a multi-picture buffer. The decoder replicates the multi-picture buffer of the encoder according to the reference picture buffering type and memory management control operations (MMCO) specified in the bitstream. Unless the size of the multi-picture buffer is set to one picture, the index at which the reference picture is located inside the multi-picture buffer has to be signaled. For this purpose, an additional picture reference index parameter has to be transmitted together with each motion vector of 16 × 16, 16 × 8, or 8 × 16 macroblock partition or 8 × 8 submacroblock.
The process for inter prediction of a sample block can also involve the selection of the pictures to be used as the reference pictures from a number of stored previously-decoded pictures. Reference pictures for motion compensation are stored in the picture buffer. With respect to the current picture, the pictures before and after the current picture, in the display order are stored into the picture buffer. These are classified as 'short-term' and 'long-term' reference pictures. Long-term reference pictures are introduced to extend the motion search range by using multiple decoded pictures, instead of using just one decoded short-term picture. Memory management is required to take care of marking some stored pictures as 'unused' and deciding which pictures to delete from the buffer for efficient memory management.

Sub-pixel Motion Vector:
The motion vector precision is at the granularity of one quarter of the distance between luma samples. If the motion vector points to an integer-sample position, the prediction signal is formed by the corresponding samples of the reference picture; otherwise, the prediction signal is obtained using interpolation between integer-sample positions. Sub-pel motion compensation can provide significantly better compression performance than integer-pel compensation, at the expense of increased complexity. Quarter-pel accuracy outperforms half-pel accuracy. Especially, sub-pel accuracy would increase the coding efficiency at high bitrates and high video resolutions. In the luma component, the sub-pel samples at half-pel positions are generated first and are interpolated from neighboring integer-pel samples using a one-dimensional 6-tap FIR filter with weights (1, -5, 20, 20, -5, 1)/32, horizontally and/or vertically, which was designed to reduce aliasing components that deteriorate the interpolation and the motion compensated prediction. Once all the half-pel samples are available, each quarter-pel sample is produced using bilinear interpolation (horizontally, vertically, or diagonally) between neighboring half- or integer-pel samples. For 4:2:0 video source sampling, 1/8 pel samples are required in the chroma components (depending on the chroma format, corresponding to 1/4 pel samples in the luma). These samples are interpolated (linear interpolation) between integer-pel chroma samples. Sub-pel motion vectors are encoded differentially with respect to predicted values formed from nearby encoded motion vectors. After interpolation, block-based motion compensation is applied. As noted, however, a variety of block sizes can be considered, and a motion estimation scheme that optimizes the trade-off between the number of bits necessary to represent the video and the fidelity of the result is desirable.

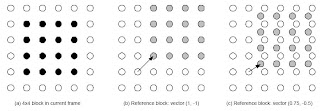

Figure 2: Example of Integer and Sub-Pel Prediction

Skipped Mode:
In addition to the macroblock modes described above, a P-slice macroblock can also be coded in the so-called skip mode. If a macroblock has motion characteristics that allow its motion to be effectively predicted from the motion of neighboring macroblocks, and it contains no non-zero quantized transform coefficients, then it is flagged as skipped. For this mode, neither a quantized prediction error signal nor a motion vector or reference index parameter are transmitted. The reconstructed signal is computed in a manner similar to the prediction of a macroblock with partition size 16 × 16 and fixed reference picture index equal to 0. In contrast to previous video coding standards, the motion vector used for reconstructing a skipped macroblock is inferred from motion properties of neighboring macroblocks rather than being inferred as zero (i.e., no motion).

Weighted Prediction:
In addition to the use of motion compensation and reference picture selection for prediction of the current picture content, weighted prediction can be used in P slices. When weighted prediction is used, customized weights can be applied as a scaling and offset to the motion-compensated prediction value prior to its use as a predictor for the current picture samples. Weighted prediction can be especially effective for such phenomena as "fade-in" and "fade-out" scenes.

Motion Vector Prediction:
After the temporal prediction, the steps of transform, quantization, scanning, and entropy coding are conceptually the same as those for I-slices for the coding of residual data (the original minus the predicted pixel values). The motion vectors and reference picture indexes representing the estimated motion are also compressed. Because, Encoding a motion vector for each partition can take a significant number of bits, especially if small partition sizes are chosen. Motion vectors for neighbouring partitions are often highly correlated and so each motion vector is predicted from vectors of nearby, previously coded partitions. A predicted vector, MVp, is formed based on previously calculated motion vectors. MVD, the difference between the current vector and the predicted vector, is encoded and transmitted. The method of forming the prediction MVp depends on the motion compensation partition size and on the availability of nearby vectors. The "basic" predictor is the median of the motion vectors of the macroblock partitions or subpartitions immediately above, diagonally above and to the right, and immediately left of the current partition or sub-partition. The predictor is modified if (a) 16x8 or 8x16 partitions are chosen and/or (b) if some of the neighbouring partitions are not available as predictors. If the current macroblock is skipped (not transmitted), a predicted vector is generated as if the MB was coded in 16x16 partition mode.
At the decoder, the predicted vector MVp is formed in the same way and added to the decoded vector difference MVD. In the case of a skipped macroblock, there is no decoded vector and so a motioncompensated macroblock is produced according to the magnitude of MVp.

Figure 3: Multiframe Motion Compensation, I addition to the motionvector picture reference parameter also transmit.
